42 AWG Plain Enamel Wire Vertical Winding Copper Wire Of Voice Coil

42 AWG Plain Enamel Wire Vertical Winding Copper Wire Of Voice Coil
Custom: Support Custom
Availability: Available
Brand: LP

Overview

Enameled Copper Wire is made of copper rod, which are draw by the specification mould,it is the baked winding wire with multiple-layers of insulating paint after annealing softening treatment.

Essential details

Place of Origin:	Henan, China	Brand Name	LP Industry
Model Number:	Enameled Copper Wire	Type	Insulated
Application:	Enameled Wire for transfomer, motor,connector, motor,transformer,modern instrument	Conductor Material:	Copper
Conductor Type:	Solid	Insulation Material:	Enameled
Thermal Class:	130 - 220C	Delivery Time:	7 - 30 Days
Standard:	IEC,NEMA,GB,JIS	Color:	Natural
Certification:	SGS, UL, ISO9001, ISO4001	Diameter:	0.025mm - 4.6mm
Insulation:	PEW, PIW, EIW, AIW, EI/AIW	Bobbin:	30kg / 50kg / Wooden Spool

Supply Ability

Supply Ability: 2500 Kilogram/Kilograms per Week

Packaging & delivery

Packaging Details:

0.19mm Super Quality Enamelled Copper Wire Factory Price Per Meter For Motor Winding Machine
Standard packaging :PT-4--PT-200 Different size bobbin with export carton or wooden box on pallet or as customer requirement.

Port:

Qingdao,Shanghai,Tianjin, Hongkong

Lead time:

Quantity(kilograms)	1 - 500	>500
Lead time (days)	10	To be negotiated

Product Description

Conductor	Copper

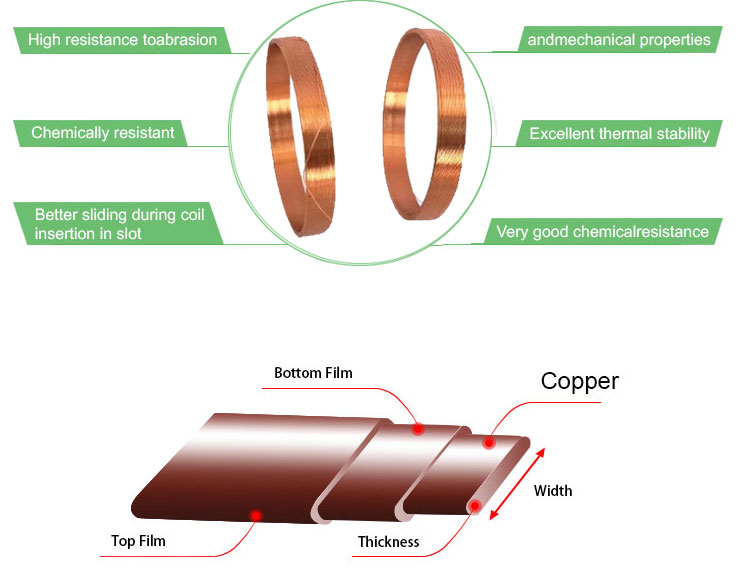

Dimension	Thickness(a): 0.1 ~ 0.6 mm; width：0.2-6.0mm
Thermal Class (℃)	180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
Features	Solderable and self-bonding
Standard	IEC,NEMA,GB,JIS
Packing	PT-4/PT-10 Plastic spool; 5kg -150kg Poly-wooden spool
Appication	High temperature voltage devices, instrumentation and various types of electronic components winding
