Chinese Sale Magnet Wire Linear Coiler 30Kw Magnetic Power Magnet Motor

Chinese Sale Magnet Wire Linear Coiler 30Kw Magnetic Power Magnet Motor
Custom: Support Custom
Availability: Available
Brand: LP

Overview

Enameled Copper Wire is made of copper rod, which are draw by the specification mould,it is the baked winding wire with multiple-layers of insulating paint after annealing softening treatment.

Essential details

Place of Origin:	Henan, China	Brand Name	LP Industry
Model Number:	30Kw Enamel Coated Copper Electronic Wire	Type	Insulated
Application:	Other, motor,transformer,modern instrument,Generator,welding	Conductor Material:	Copper
Conductor Type:	Solid	Insulation Material:	Enameled
Product Name:	30Kw Enamel Coated Copper Electronic Wire	Delivery Time:	7 - 30 Days
Standard:	IEC,NEMA,GB,JIS	Color:	Natural
Bobbin:	30kg/50kgWooden Spool	Diameter:	0.016mm - 9.2mm
Insulation:	PEW, PIW, EIW, AIW, EI/AIW	Feature:	high strength, high temperature, solvent resistance

Supply Ability

Supply Ability: 1500 Kilogram/Kilograms per Week

Packaging & delivery

Packaging Details:

30Kw Enamel Coated Copper Electronic Wire
Standard packaging :PT-4--PT-200 Different size bobbin with export carton or wooden box on pallet or as customer requirement.

Port:

Qingdao,Shanghai,Tianjin, Hongkong

Lead time:

Quantity(kilograms)	1 - 500	>500
Lead time (days)	5	To be negotiated

Product Description

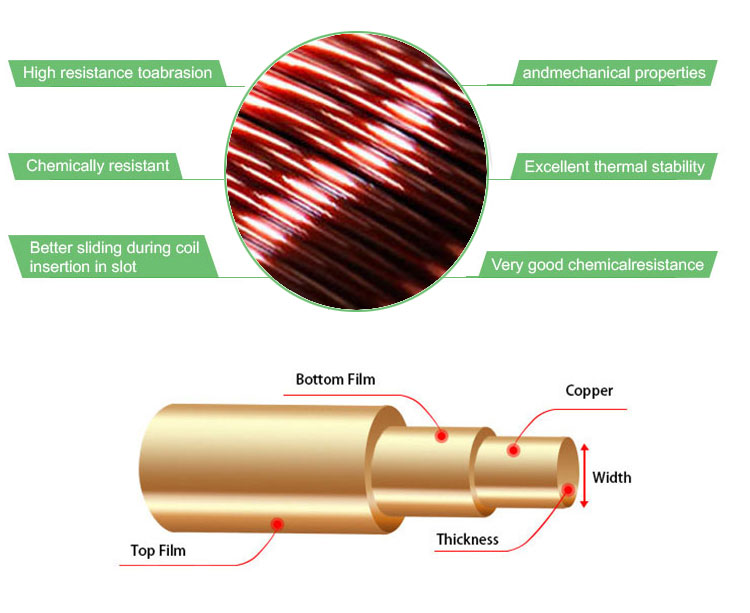

The insulation or overcoating used on enameled round wire is a type of polymer film (varnish) made from a variety of resins—typically polyester, polyglass, or polyamide—to create a tough, continuous layer of protection for the wire and allow for numerous windings in a coil without producing a short circuit.

Various types of varnishes produce different characteristics or properties, such as: High thermal index (AI) Abrasion resistance (NY) Self-bonding (SB) Self-lubricating (SL) Enameled round wire meets temperature classes between 105 °C and 240 °C, providing a guaranteed service life of 20,000 hours at the rated temperature. Magnet wire comes in a variety of sizes and shapes such as rectangular, square, and round. Enameled wire with a thermoplastic layer to bond the coils together is used to create self-supporting coils, which eliminate the need for a bobbin and accommodate tight spaces in various electronics applications.

The enameled copper wire is made of copper conductor and insulation materials, the insulation materials mainly include UEW, PEW and AIW, the temperature class 130℃, 155℃, 180℃, 200℃, 220℃ and 240℃. The color is natural and beautiful.

Conductor	Copper
Dimension	0.016-7.0mm
Thermal Class (℃)	180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
Insulation thickness	G1;G2;G3;G4
Standard	IEC,NEMA,GB,JIS
Certificate	UL
Packing	PT-4/PT-200 or Poly-wooden spool
Appication	Transformer;motor;generator;modern instrument;welding machine and so on
