Copper Enameled Wire Price in India Faridabad UL Certificate 0.23mm 1 Kg

Copper Enameled Wire Price in India Faridabad UL Certificate 0.23mm 1 Kg
Custom: Support Custom
Availability: Available
Brand: LP

Overview

Enameled Copper Wire is made of copper rod, which are draw by the specification mould,it is the baked winding wire with multiple-layers of insulating paint after annealing softening treatment.

Essential details

Place of Origin:	Henan, China	Brand Name	LP
Model Number:	Enameled copper wire	Type	Insulated
Application:	Sealed motor,transformer,modern instrument,Generator,welding machine	Conductor Material:	Copper
Conductor Type:	Solid	Insulation Material:	Enameled
Export:	over 200 countries	Standards:	IEC NEMA GB JIS
Characteristics:	Excellent heat shock, adherence and flexibility	Temperature Class:	130,155,180,200,220
Delivery time:	Timely delivery guaranteed	Diameter:	Round:0.025-4.5mm;Flata:1-10,b:3-16mm;Square:a(b) 0.4-7mm
Advantages:	High conductivity,Good solderability,High ductility	Certification:	SGS,UL,ISO9001,ISO4001

Supply Ability

Supply Ability: 1500 Ton/Tons per Month 0.23mm 1 kg Copper Enameled Wire Price

Packaging & delivery

Packaging Details:

0.23mm 1 kg Copper Enameled Wire Price Inner packing: in different plastic spools(Plastic Spool of PT-4,PT-10,PT-15,PT-25,PT-60,PT-90,PT-200) according to your wire diameters
Outer packing:wooden spooland and wooden case or according customers' special requirement

Port:

Qingdao,Shanghai,Tianjin,Hongkong

Lead time:

Quantity(kilograms)	1 - 500	>500
Lead time (days)	5	To be negotiated

Product Description

Main Application Of Enameled Copper Wire

1-Sealed motor working under high temperature
2-Transformer
3-Modern instrument
4-Generator
5-Welding machine

Product Name	Round Copper Magnet Wire
Conductor	Copper
Dimension	Diameter: 0.016 ~ 8mm
Thermal Class (℃)	120(Class E);180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
Insulation thickness	G1;G2;G3;G4
Certificate	UL
Standard	IEC,NEMA,GB,JIS
Packing	PT-15~PT-270 or ply-wood spool
Appication	Transformer; motor;generator; modern instrument; welding machine and so on

Main Features

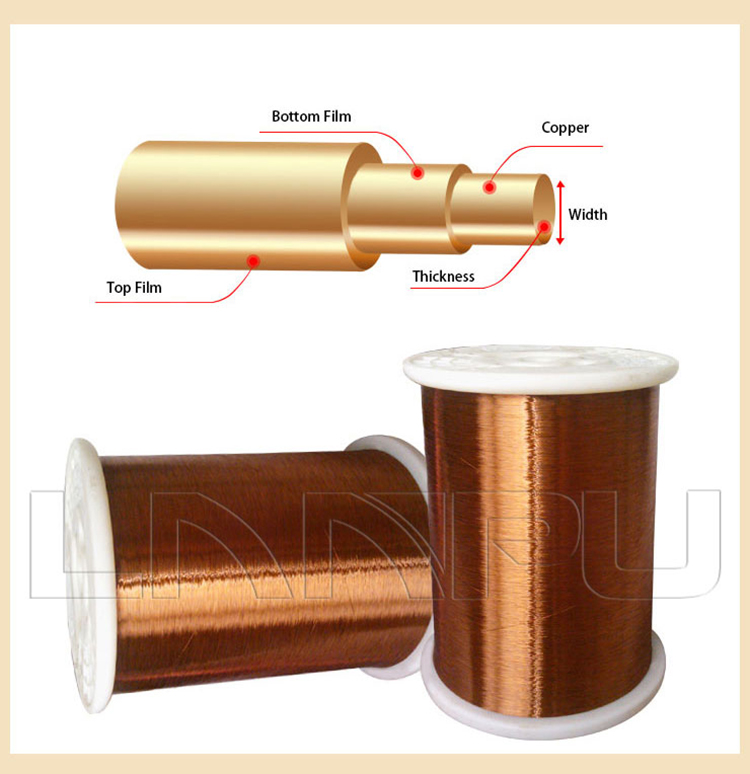

1) Enameled Copper Wire is one kind of magnet wire which is consisted of bare round copper which accord with EN 13601Cu-ETP standard as the conductor and multi-layer insulation layers. The multi-layer insulation layers can be polyester, modified polyester or polyester-imide and so on.

2) Our Enameled Round Copper Wire is one kind of enameled wire which has high heat resistance. Its temperature class can be from 130℃ to 220℃.

3) Our Enameled Round Copper Wire uses TU2 oxygen-free copper as raw material.TU2 oxygen-free copper has good conductivity and heat conductivity.
