Awg 42 Heavy Formvar Copper Magnet Wire Heavy Formex

Awg 42 Heavy Formvar Copper Magnet Wire Heavy Formex
Custom: Support Custom
Availability: Available
Brand: LP

Overview

Square Enameled Magnet Copper Wire is a type of square magnet wire and designed in a wide range of square wire sizes and profiles. And mainly used in Transformer, generator, refrigeration system, class C generators, UPS power supply, electronic transformer like enameled square aluminum wire.

Essential details

Place of Origin:	Henan, China	Brand Name	LP Magnet Wire
Model Number:	Winding Wire	Type	Insulated
Application:	Ultra Fine Rectangular Enameled Wire for transfomer, motor, connector	Conductor Material:	Copper
Conductor Type:	Solid	Insulation Material:	Enamelled
Color:	Natural	Standard:	IEC,NEMA,GB,JIS
Diameter:	0.016-0.2mm	Temperature Class:	180-220C
Delivery time:	7 - 30 days	Insulation:	Heavy Formvar
Bobbin:	3kg-5kg Wooden Spool	UL NO:	E345303

Supply Ability

Supply Ability: 250 Ton/Tons per Month Double Coated Ultra Fine Self-Bonding Rectangular Enameled Coppe

Packaging & delivery

Packaging Details:

Awg 42 Heavy Formvar Copper Magnet Wire Magnet Copper Wire Heavy Formex
Standard packaging :3kg-5kgWooden Spool, also 1kg, 2kg

Port:

Qingdao,Shanghai,Tianjin,Hongkong

Lead time:

Quantity(kilograms)	1 - 500	>500
Lead time (days)	5	To be negotiated

Product Description

Conductor	Copper
Dimension	Thickness(a): 0.1 ~ 0.6 mm; width：0.2-6.0mm
Thermal Class (℃)	180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
Features	Solderable and self-bonding
Standard	IEC,NEMA,GB,JIS
Packing	PT-4/PT-10 Plastic spool; 5kg -150kg Poly-wooden spool
Appication	High temperature voltage devices, instrumentation and various types of electronic components winding

Application

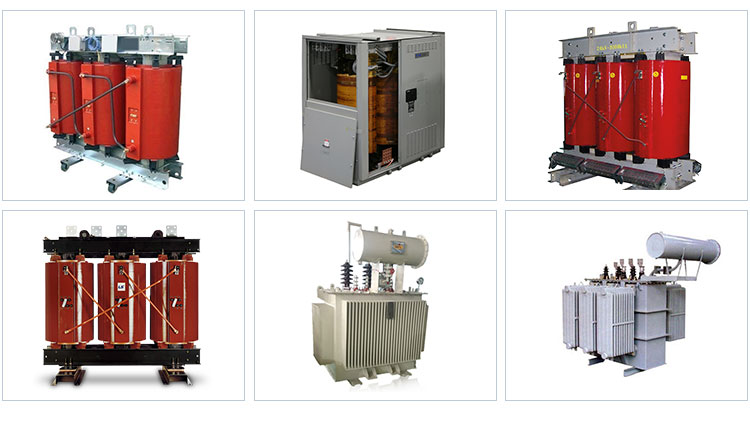

Enamelled wire is used in many electrical products, usually for the purpose to generate electrical fields such as in transformers and motors. Special examples are voice coils made from selfbonding wire or enamelled aluminum wire for instance or injection valves made of enamelled brass wire.
